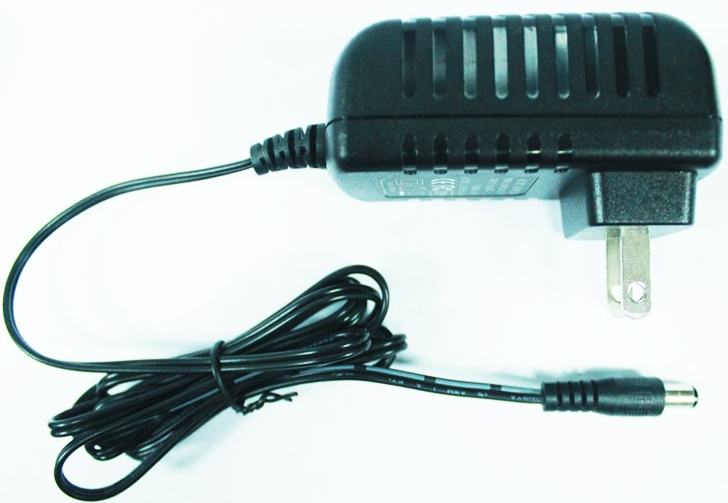

| Product Name:SMP012M | Model List: |
| Application range: Portable or indoor medical equipments | SMP012M050200 5V 2.0A |
| Product Features: | SMP012M120100 12V 1.0A |
| ? Universal AC Input / Full Range | SMP012M240050 24V 0.5A |
| ? 12W Constant Voltage Circuit | |
| ? Protections Mode: OVP, OCP and SCP | |
| ? Light Weight, Small Volume | |
| ?High Reliability, MTBF > 100Khrs | |
| ? Compliance with Energy level VI | |
| ? 3 Years Warranty |
| Electrical Parameter | Environment & Safety Specification | ||
| Input Voltage Range | 90-264Vac | Operating Temperature | 0℃~45℃ |
| Input Frequency | 50/60Hz | Storage Temperature | -20℃~ 85℃ |
| Inrush Current | <50A | Storage Humidity | 5~95% |
| Hold up Time | >10mS | Cooling Mode | Natural Cooling |
| Turn on Delay(s) | <3 | MTBF | ≧100,000Hrs @full load |
| Rated Output Voltage | 24Vdc Max. | Surge Voltage | ±2KV |
| Max. Output Current | 2.0A Max. | Insulation Voltage | 4KVac @ Primary v.s. Secondary |
| Output Voltage Tolerance | <±5% | Insulation Resistance | >10Mohm @ Primary v.s. Secondary @ 500Vdc |
| Ripple and Noise (Vpp) | <120mV | Leakage Current | <250uA |
| Efficiency (%) | >88% (Energy level VI) | Safety Mark & Standards Complicance | UL60601-1,IEC60601-1,EN60601-1,CSA22.2 No.601-M90 |
| Static Loss | <0.1W | EMC & EMI Standards Complicance | EN55011 Level B IEC60601-1-2 |
| Protection Function | OVP, OCP, SCP | Dimension (L*W*H) mm | 62*40*26.5mm |
